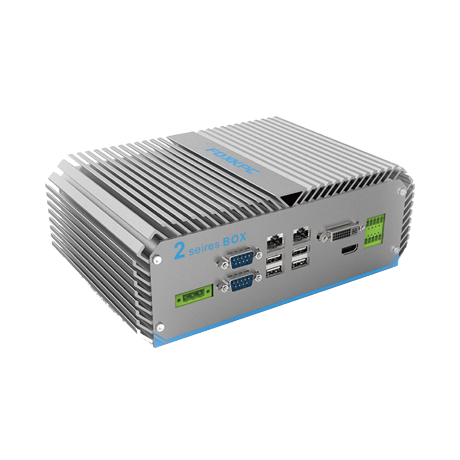

| 型号 | KPC-B02 |
CPU | Intel® Celeron® 3955U Intel® CoreTM i3-6100U Intel® CoreTM i5-6200U Intel® CoreTM i7-6500U |
| 内存 | 2GB DDR4 2133MHz SO-DIMM SDRAM,4GB/8GB/16GB/32G optional |
| 前面板 I/O接口 | |
| 音频接口 | Mic-In x 1 , Line-Out x 1 |
| 串口 | COM3 and COM4: RS-232/RS-422/RS-485 (BIOS setting), COM5 and COM6: RS-232 or Isolated RS-232/RS-422/ RS- 485(Optional) |
| 网络(LAN) | LAN Module (4xRJ45 LAN/4xM12 LAN /4xRJ45 POE/4xM12 POE Optional) |
| USB | USB2.0 x 2 |
| 其他 | Power Switch x 1 , Extended Power Switch x 1, Power LED x 1 , HDD LED x 1 |
| 后面板 I/O接口 | |
| 视频接口 | HDMI x 1,DVI-Ix 1,DPx 1 |
| 串口 | COM1 and COM2: RS-232/RS-422/RS-485 (BIOS setting) |
| 网络(LAN) | 2 x 10 / 100 / 1000Mbps Intel® I211AT and Intel® I219LM Ethernet |
| USB | USB 3.0 x 4 |
| GPIO | In x 4, Out x 4 |
| 其他 | Power Connector x 1 |
| 存储 SSD | 2 × Full-size mSATA (32GB / 64GB / 128GB / 256GB / 512GB Optional) |
| 扩展存储 SSD/HDD（可选） | 2 × Removable 2.5" device bay for SSD &HDD 32GB / 64GB / 128GB / 256GB / 512GB SSD or 1TB / 2TB HDD Optional |
| 扩展插槽 | 2 × Full-size Mini -PCIe expansion slot ,share with mSATA( WI-FI Module ,4G Module Optional） |
| 电源输入电压(V) | DC 9 ~ 48V |
| 功耗 | <45W @ Intel® Celeron® 3955U & 4GB memory,Burn in8.0 |
| 外壳材质 | Heat-Sink: Aluminum Extrusion alloy, Rear Cover: SECC |
| 尺寸(L×W×H)(mm) | 235×174.0× 86 |
| 安装方式 | Support VESA/Wall mounted/desktop/DIN-Rail Mount installation |
| 认证 | CE , FCC , VCCI Class A,UL |
| 系统 | Microsoft® wes7 / windows7 / windows8.1 / windows10 / Linux |
| 工作温度 | 0～50℃(32℉~122℉) natural convection |
| 工作相对湿度 | 10%~90%RH@31℃(87.8℉) non-condensing |
| 存储温度 | -20～60℃(-4℉~140℉) |
| 存储相对湿度 | 10%~95%RH@39℃(102.2℉) non-condensing |
| 抗振动 | 2~600Hz 0.66Grms(Operational with SSD) 5~500Hz 2.09 Grms(Non-operational with SSD) 5~500Hz 0.21Grms(Operational with HDD) 5~500Hz 2.09 Grms(Non-operational with HDD) |
| 抗冲击 | 40G 2msec(Operational with SSD) 140G 2 msec(Non-operational with SSD) 40G 2msec(Operational with HDD) 40G 11 msec(Non-operational with HDD) |
